Repeater can change the corresponding signal into a digital signal with variable baud rate (baud rate 4800-38400), which is displayed on the LCD screen accurately. At the same time, it outputs the NMEA-0183 signal for the use of radar, electronic chart and other equipment, and can be connected to the printer equipment.
l Monitor：3.5”color display, number of pixel 320×480, Adjustable brightness
l Data format：RS-232,RS-422，AD-10；
l Power : 12-24 VDC

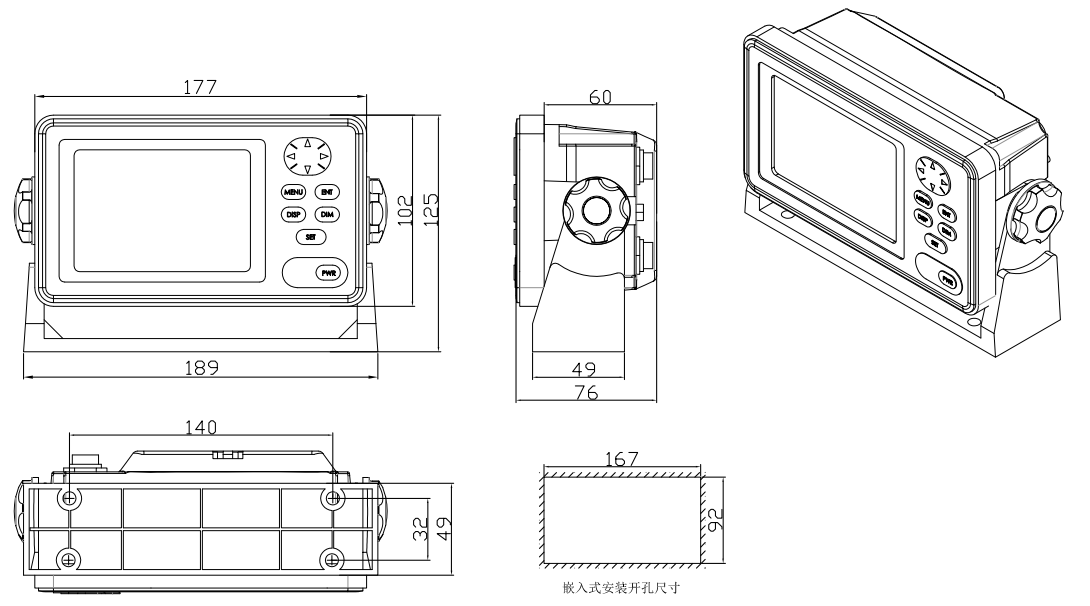

l Host size: 177 × 102 × 76mm （can be flush mounted）
l Host weight: 430g
l Operating Temperature -10℃ ～ +70℃
l Humidity: <95%
l Waterproof, moisture, salt spray; sensor waterproof rating IP65
l Shockproof : Fully rugged design, withstand 1.5m free fall
l Reliability : Mean time to failure ≥ 5000 h
l Meteorological Instrument Repeater
l LOG Repeater
l Heading Repeater
l Depth Sounder Repeater
l GPS Repeater
l GYRO Conversion Repeater
